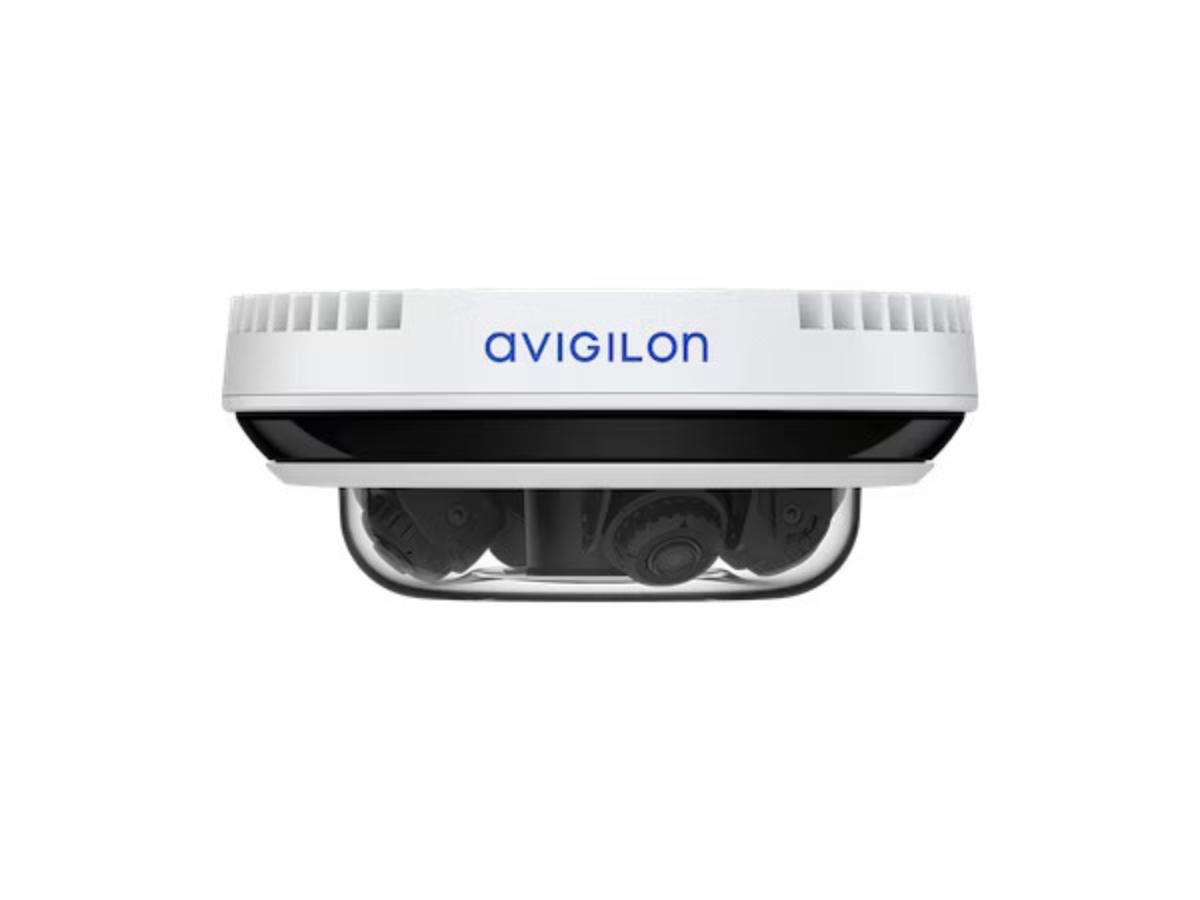

Avigilon 20C-H5A-4MH 20MP(4x5MP) Module Dependent Multisensor IP Camera, H.265: H.264: MJPEG, 3.3-5.7mm 1.7x Varifocal Motorised Lens, Module Dependent, True WDR, Auto Focus Lens, ICR D/N Filter, Module Dependent, AI-Metadata, External I/O, OnBoard Storage, 24VAC: 24VDC: PoE
Code: AVG20C-H5A-4MH
Unit of measure:
EACH
Description
Avigilon 20C-H5A-4MH H5A 20MP(4x5MP) Multisensor IP Camera, H.264 H.265 MJPEG, 3.3-5.7mm 1.7x Varifocal Motorised Lens, True WDR, Auto Focus Lens, ICR D/N Filter, AI-Metadata, External I/O, OnBoard Storage, 24VAC 24VDC PoE
• Check datasheet for module dependent mounting options
Technical Specifications
Looking for something specific? Search with keywords to help filter your required specifications.
| Number of Sensors | 4 |
| Max Resolution | I) 17MP to 20MP |
| IR LEDs | Module Dependent |
| Power Source | 24VAC: 24VDC: PoE |
| Vandal Rating | Module Dependent |
| Indoor/Outdoor | Module Dependent |
| Focal Length Range | Wide Field of View |
| Focal Length | 3.3-5.7mm |
| D/N Type | ICR |
| Auto Back Focus / Focus Type | Auto Focus Lens |
| OnBoard Storage | Yes |
| Vandal Resistant | Module Dependent |
| Inputs / Outputs | Yes |
| Min Illumination | Colour 0.02Lux B/W 0.018ux 0Lux with IR |
| Camera/Body Type | Multisensor |
| Video Codec | H.264: H.265: MJPEG |
| Optical Zoom Magnification | 1.7x |
| Analytics | AI-Metadata |
| IR LEDs Distance | Module Dependent |
| Brand Name | Avigilon |
| Water Dust Rating | Module Dependent |
| WDR Type | True WDR |
| Image Sensor | 1/2.8" CMOS |
| Audio | Yes |
| Focal Length Type | Varifocal Motorised |
